I know the part or dimensions
Browse the closest product family, then send the profile, critical dimensions, material and target quantity.
Product family guide
Find the Right Component Before You Request a Quote
Browse by component type, then confirm the dimensions, material, tooling route and quantity that make the part production-ready.
3Main component groups
12Curated product families
OEMExisting or new tooling
Start with the component
Choose the product group closest to your project
These are sourcing routes, not a list of every possible inch size. Dimensions and variants are confirmed inside the selected family.
Rubber Surrounds
5 familiesSurround families organized by material and application. Final fit is confirmed from the profile and critical dimensions.
Explore this group

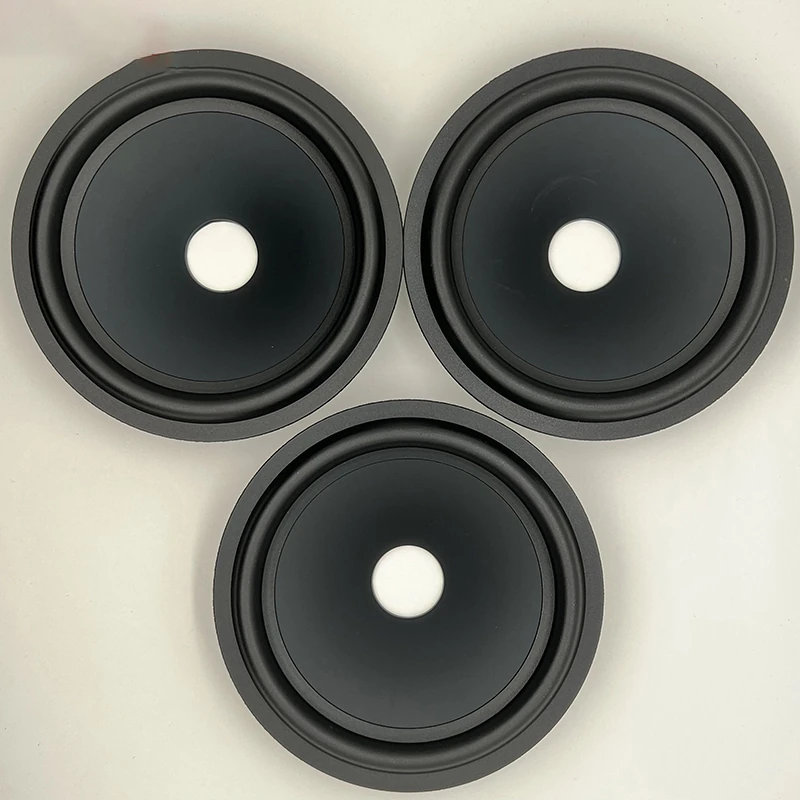

Cone Assemblies
4 familiesCone-and-surround assemblies for different cone bodies, geometries and acoustic targets.
Explore this group

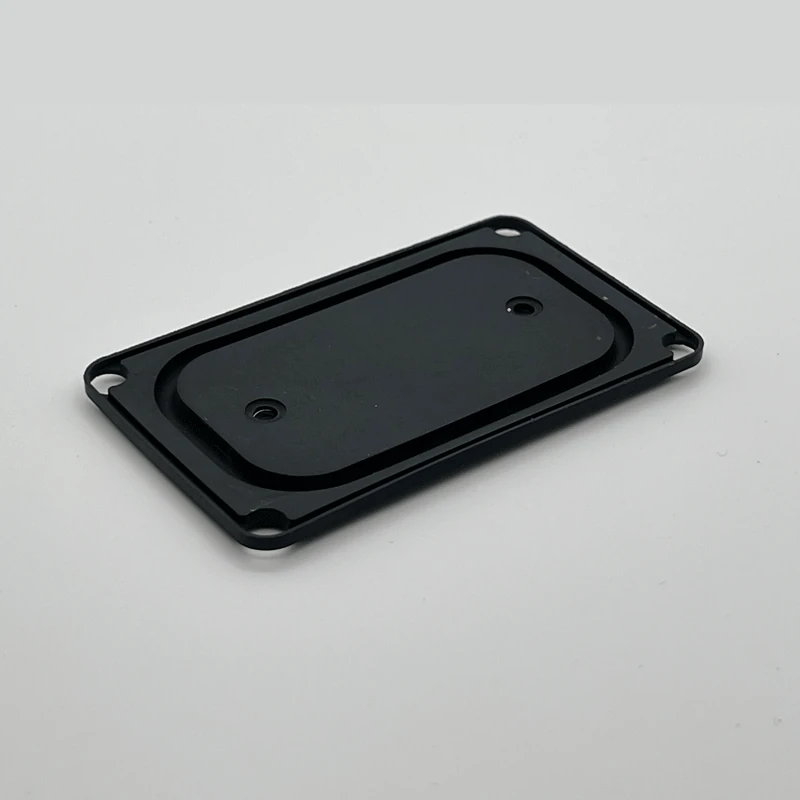

Other Rubber Products
3 familiesPassive-radiator diaphragms, dust caps, gaskets and other molded components for speaker and industrial projects.
Explore this groupCatalog overview
Compare representative product families
Select the closest family to review details. Similar sizes are intentionally grouped: a nominal 3-inch or 3.5-inch label alone is not enough to confirm fit.
Cannot find an exact match?Send a drawing or sample. We will check existing tooling before discussing a new mold.
Aluminum Cone with SurroundCustomized Cone Assembly (Aluminum Cone Body)
Key features: anti-aging, waterproof and durable. Cone material: metal (aluminum); surround: foam or cloth. Size range 1 inch to 21 inch, color and frequency response customizable. Business type: OEM/ODM manufacturer.
MOQ 500 pieces2-7 days
Sandwich Cone with Rubber SurroundCustomized Cone Assembly (Injection-Molded PP Sandwich Cone Body)
Composite sandwich cone with rubber surround: two glass-fibre skins bonded over a structural foam core give a more uniform, extremely stiff and light diaphragm with superior bending behaviour and a fully optimized frequency response. For car, TV, home-theater, in-wall, ceiling and wireless speakers. OEM/ODM manufacturer. Lead time 30-50 days after order confirmation.
MOQ 500 pieces30-50 days
Woven Cone with SurroundCustomized Cone Assembly (Woven Fiber Cone Body)
Key features: anti-aging, waterproof and durable. Cone material: woven fiber such as Kevlar, glass fiber and carbon fiber. Surround: rubber, foam or cloth. Size range 1 inch to 21 inch. Color and frequency customizable. OEM/ODM manufacturer.
MOQ 500 pieces30-50 days
Passive RadiatorCustomized Passive Radiator
Business type: OEM/ODM manufacturer. Main products: rubber surrounds, cone assemblies and other rubber products. Employees: 50-100. Founded: 2001. Management system certifications: ISO14001, IATF16949.
MOQ 500 pieces2-7 days
Foam RubberFoam Rubber Surround for Loudspeakers
High sensitivity and easy low-frequency parameter tuning. Material: foam (foamed rubber). Size range 1 inch to 21 inch. MOQ 1 piece. Lead time: up to 1k pcs in 2 days, 1k-10k in 7 days, above 10k negotiable. Shipping by air, sea or land.
MOQ 500 pieces2-7 days
Butyl Rubber (IIR)IIR Rubber Surround for Loudspeakers
Excellent air-tightness, water-tightness and sealing. Material: IIR (butyl rubber). Size range 1 inch to 21 inch. MOQ 1 piece. Lead time: up to 1k pcs in 2 days, 1k-10k in 7 days, above 10k negotiable. Shipping by air, sea or land.
MOQ 500 pieces2-7 days
Nitrile Rubber (NBR)NBR Rubber Surround for Loudspeakers
Excellent oil, wear and heat resistance with strong adhesion. Material: NBR (nitrile rubber). Size range 1 inch to 21 inch. MOQ 1 piece. Lead time: up to 1k pcs in 2 days, 1k-10k in 7 days, above 10k negotiable. Shipping by air, sea or land.
MOQ 500 pieces2-7 days
Dust CapRubber Dust Cap
Key features: waterproof, dustproof, durable, multiple shapes available. Materials: IIR, NBR, SBR, EPDM. Size range 1 inch to 21 inch. MOQ 1 piece. Lead time: up to 1k pcs in 2 days, 1k-10k in 7 days, above 10k negotiable. Shipping by air, sea or land.
MOQ 500 pieces2-7 days
Styrene-Butadiene Rubber (SBR)SBR Rubber Surround for Loudspeakers
Key features: excellent abrasion resistance, good high/low-temperature resistance and good aging resistance. Material: SBR (styrene-butadiene rubber). Size range 1 inch to 21 inch. MOQ 1 piece. Lead time: up to 1k pcs in 2 days, 1k-10k in 7 days, above 10k negotiable. Shipping by air, sea or land.
MOQ 500 pieces2-7 days
Sleeve, Gasket & Foot Pad (Speaker Accessories)Sleeve, Shim & Door Mat - Speaker Rubber Accessories
Auxiliary rubber components used on speakers - rubber gaskets, rubber feet, seal rings, wire clips/cable ties and magnet covers. Each part uses the material best suited to its job (IIR, NBR, SBR, EPDM, silicone). MOQ 1 piece. Lead time: up to 1k pcs in 2 days, 1k-10k in 7 days, above 10k negotiable. Shipping by air, sea or land.
MOQ 500 pieces2-7 days
OEM/ODMEPDM Rubber Surrounds for Loudspeakers
Weather-resistant EPDM speaker surrounds available in custom sizes, roll profiles, hardness and colors for outdoor, marine and automotive audio projects.
MOQ 500 pieces2-7 days
Paper Cone with SurroundCustomized Cone Assembly (Paper Cone Body)
Key features: natural sound, cost-effective, lightweight paper cone. Customized paper cone assembly with rubber, foam or cloth surround. Cone process: pulp beating, cone forming, cone cutting, 100% in-process inspection. For car, TV, home-theater, wall-mount, ceiling and wireless speakers. Lead time 30-50 days.
MOQ 500 pieces2-7 days
How to start
Use the information you already have
You do not need to guess a catalog SKU before contacting us.
I have a physical sample
Use the catalog to identify the component type. We can then review sample-based matching and tooling options.
I only know the application
Tell us the driver, excursion, environment and performance target so we can narrow the material and geometry.
Product families instead of duplicate size listings
Existing tooling checked before new tooling
Sample and specification approved before bulk
Frequently Asked Questions
What speaker components do you manufacture?
As an OEM/ODM manufacturer of speaker components we make the full driver-parts line: rubber edge surrounds, foam surrounds, speaker gaskets, paper cones and custom cones, plus OEM speaker parts and accessories such as dust caps and spiders. We build to catalog specs or fully to your drawings.
What is your minimum order quantity (MOQ)?
Standard MOQ is 500 pcs per SKU for catalog speaker rubber surrounds, cones, spiders and dust caps. Trial orders start at 100 pcs, and mixed-SKU sample orders can be arranged. Custom-tooled parts carry a higher MOQ tied to the new mold.
What are your typical lead times?
Samples are usually ready in 3–7 days. Mass production typically takes 15–30 days after sample approval and deposit, depending on quantity, compound and whether new tooling is required.
Do you offer OEM and ODM, and what can be customized?
Both. For OEM we manufacture to your drawings and specs; for ODM we help develop the part from your target size, driver and performance goals. This covers rubber and foam surrounds, gaskets, paper and custom cones and OEM speaker parts and accessories. Customizable items include diameter (about 1" to 21"), surround/roll profile, rubber compound, Shore A hardness, color, thickness, and private-label packaging.
Which materials and compounds do you offer and how do I choose?
For rubber surrounds and gaskets we run NBR, IIR (butyl), EPDM, SBR and foam. IIR/butyl gives high damping and low air leakage for premium woofers; EPDM offers weather and ozone resistance for outdoor or marine use; NBR resists oil; SBR is a cost-effective general option; foam suits lightweight high-compliance surrounds. Cones use pressed paper, with custom cones made to your coating and weight. Share your driver and application and we will advise the best fit.
What speaker sizes do you cover?
Roughly 1" to 21" — from tweeter and micro-driver parts up to large pro-audio and subwoofer surrounds and passive radiators.
Can I get samples, and how does tooling work?
Yes. Existing-profile and logo samples are available quickly. Custom geometries need a mold with a one-time tooling cost that is often creditable against bulk orders. We confirm a pre-production sample with photos before mass production.
Can you provide RoHS / REACH compliance documentation?
Yes. RoHS- and REACH-compliant compounds are available. We can supply material declarations and arrange SGS or Intertek third-party testing on request.
What shipping methods and Incoterms do you support?
We ship FOB, CIF and DDP, or hand over to your nominated forwarder. Each order includes a commercial invoice, packing list and standard export documents, with carton marks, barcode labels and export carton planning.
